商品の詳細:
|

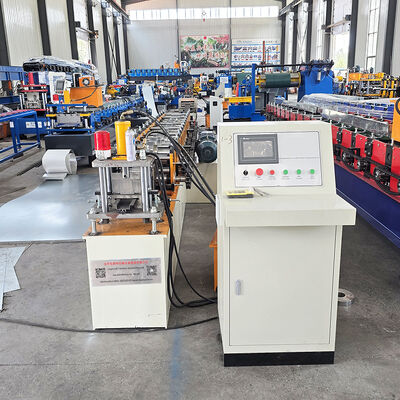

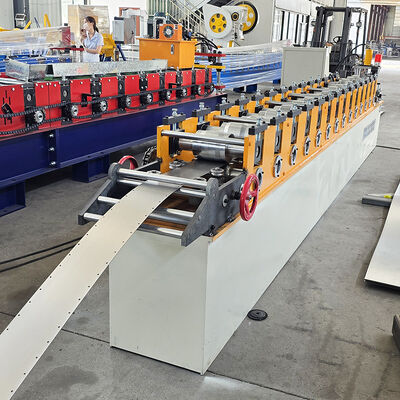

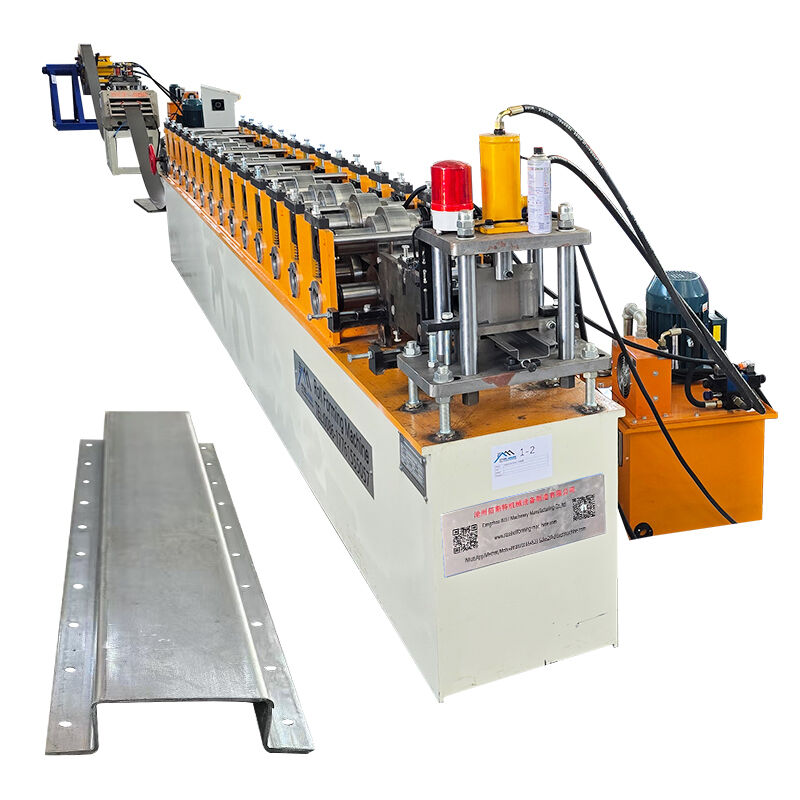

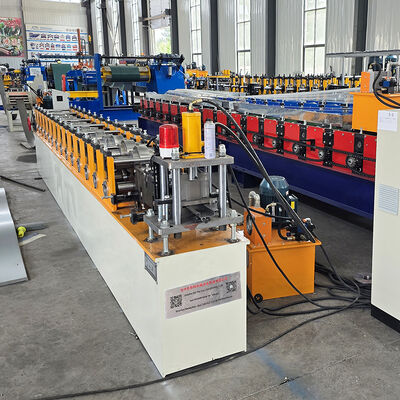

| Name: | Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching | 力: | 7.5KW |
|---|---|---|---|
| Dimension: | 7700*1550*1510mm | 色: | あなたが要求するように |
| ボトムフレーム: | 360H鋼 | 保証: | 2年 |
| ハイライト: | galvanized steel hat channel machine,hydraulic punching purlin roll former,steel purlin roll forming machine |
||
| Component | Quantity |
|---|---|
| Decoiler | 1 set |
| Leveling Device | 1 set |
| Roll Forming Machine | 1 set |
| Punching Device | 1 set |
| Cutting Device | 1 set |
| PLC Control System | 1 set |
| Hydraulic Pump | 1 set |
| Output Table | 1 set |
| Type | Hydraulic or Manual (Optional) |
| Inner Diameter | 450-550mm |
| Outer Diameter | 1500mm |
| Width | 500mm |
| Capacity | 5000kg |
| Width | 600mm |
| Rollers for Leveling | 5 rollers |
| Material for Rollers | GCr15 steel |
| Hardness for Heat Treatment | HRC 55-60° |
| Roller Station | 13 steps |
| Roller Material | Gcr15 steel |
| Thickness | 1mm |
| Type | 4 pillars hydraulic punches |
| Length for Punch Table | 1.2m × 1.5m |
| Motor for Hydraulic Punch | 7.5 kw |
| Hole-Punching Modular | 3 pieces |
| Type | Hydraulic |
| Power | 5.5kw |
| Driven | 1 inch chain |
| Cutting Blade | Cr12 steel |
| Type | PLC Frequency Control System with touch screen |
| PLC Brand | Japan Panasonic |
| Encoder Brand | Omron |
| Length Error | ±2mm |
| Language | English and Chinese |
| Power | 3kw |
| Oil Type | 46# hydraulic oil |
| Pump Brand | China Brand |
| Length | 6m |
| Function | Simple design for loading finished products |
| Roller Material | Cold Roller Steel Sheet |
| Material for Shaft | GCR45 steel |
| Hardness for Heat Treatment | HRC55-60° |
| Diameter of Shaft | 80mm |
| Frame Panel Thickness | 20mm |
| Bottom Frame | 360# H-section steel |
| Rolling Speed | 8-12m/min |
| Service Aspect | Details |
|---|---|
| Payment Type | 30% T/T prepaid and balance paid before loading |
| Delivery Time | 30 days after receiving advance payment |
| Guarantee Period | 18 months free service / pay service for machine lifetime |
| Installation and Training | On-site training for visiting buyers; user manual and video guidance for remote support; technician dispatch available with accommodation arrangements |
