商品の詳細:
|

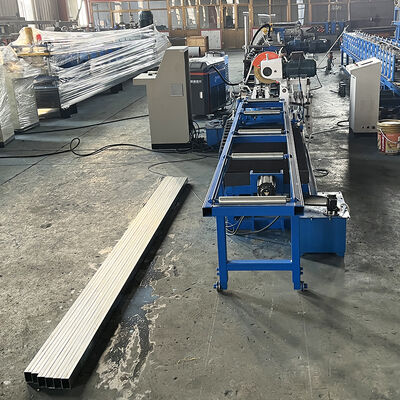

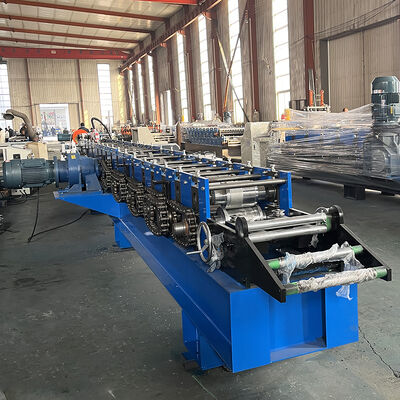

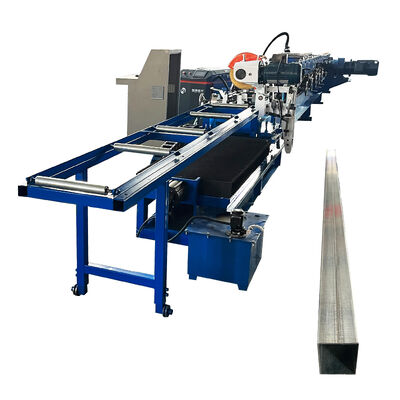

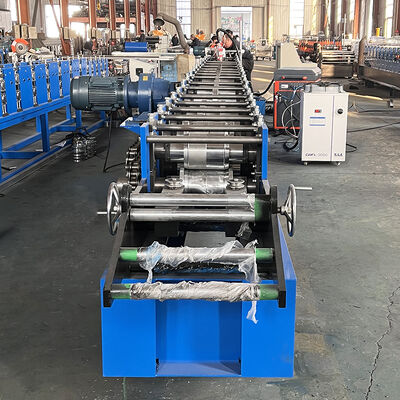

| 名前: | 亜鉛メッキ鋼プロファイルレーザー溶接角＆丸管製造冷間圧延成形機 | 使用法: | 鉄鋼建築 |
|---|---|---|---|
| 切断刃の材質: | Cr 12の高い等級の鋼鉄 | 制御システム: | 台湾デルタ |
| 切断タイプ: | 油圧切断 | 色: | クライアントのリクエスト |
| 特徴: | 高速生産 | ||
| ハイライト: | galvanized steel roll forming machine,laser welding tube forming machine,cold roll forming machine for down spout |
||
| Parameter | Specification |
|---|---|
| Material Type | Aluminium coil or color coated coil |
| Material Thickness | 1-3mm |
| Yield Strength | 280-350 MPA |
| Feeding Width | According to profile requirements |
| Effective Width | According to profile requirements |
| Specification | Value |
|---|---|
| Inner Diameter | 450-550mm |
| Outer Diameter | 1500mm |
| Max Coil Width | 300mm |
| Capacity | 1.5T |
| Decoiler Dimension | 1.5 * 1.5 * 1.5m |
| Decoiler Weight | 355 KGS |
| Quantity | 1 set |
| Parameter | Specification |
|---|---|
| Forming Steps | 16 steps |
| Shaft Diameter | 70mm |
| Machine Stand | Welded Middle Plate |
| Machine Frame | 300 H Steel welded |
| Roller Material | 45# steel |
| Shaft Material | 45# steel with quenching and tempering |
| Work Speed | 10-15m/min |
| Transport System | By chain |
| Main Machine Power | 5.5kw |
| Voltage | 380V-50HZ-3P (as required) |
| Machine Dimension | 7.5 * 0.8 * 1.5m |
| Machine Weight | Approximately 3.5T |
| Machine Color | Yellow and blue (as required) |
