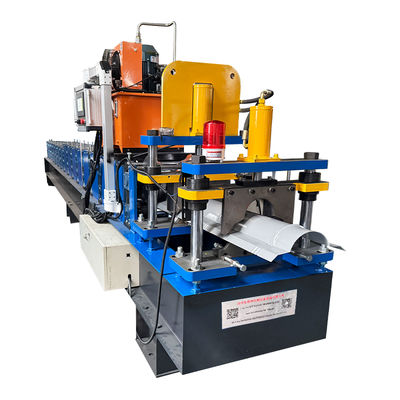

商品の詳細:
|
| 名前: | 鋼プロファイルIBR用の金属亜鉛メッキリッジキャップロール成形機 | 電圧: | 380V 50Hz 3相 |
|---|---|---|---|
| 状態: | 新しい | タイルタイプ: | 着色された鋼鉄 |
| 使用: | 屋根 | 証明: | CE/ISO9001 |
| 原材料: | ppgiまたは亜鉛メッキシートコイル | キーワード: | ロールトップリッジキャップロール成形機 |
| ハイライト: | 45# Forged Steel Rollers Ridge Cap Roll Forming Machine,Cr12 Cutting Blades Ridge Cap Roll Forming Machine,13 Forming Steps Ridge Cap Roll Forming Machine |
||
| Feature | Specification |
|---|---|
| Suitable to process | Color alu-zinc steel coil |
| Roller | 12-16 Rows |
| Dimensions | 6.7×1×1.5m |
| Motor Power | 5.5Kw |
| Thickness of the plate | 0.3-0.8mm |
| Productivity | 3-5m/min |
| Material of the cutting blade | Cr12, Quenched treatment 58℃-60℃ |
| Diameter of the roller | Φ50mm |
| Weight | About 3200kgs |
| Main structure of the machine | 350H beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 16mm |
| Voltage | 380V 50Hz 3phases (customizable) |
| Control system | PLC control (Delta) |
Manual decoiler: Supports steel coil and uncoils it manually. Loading capacity: 5T, Inner diameter: 500-508mm
Feeding table: Guides raw material through processing to ensure uniform, parallel products.

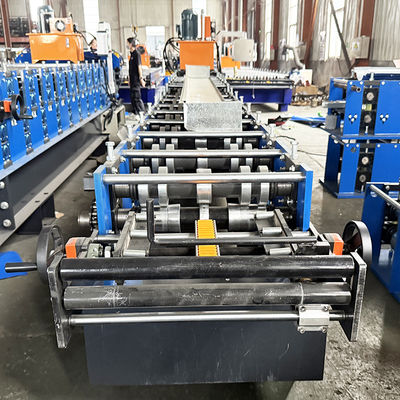

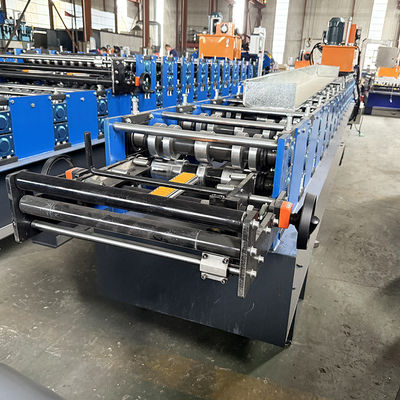

Main rollers: Made of high-grade 45# forging steel with polished surfaces and hard plating for smooth operation.
Computer Control Cabinet: Features Delta PLC, touch screen, and frequency system with multilingual support.
Motor driver: 5.5Kw main motor with options for German brands or customer preference.
Hydraulic station power: 4Kw hydraulic station (Lichao brand, Shanghai).

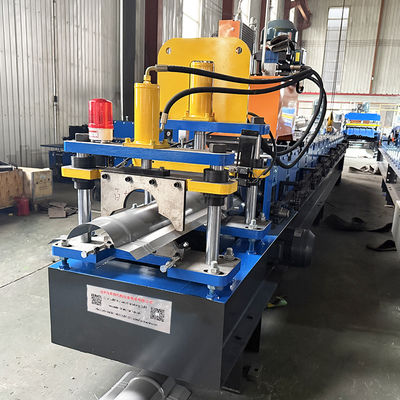

Cutting head: Motor-driven with automatic dimension control. Blades made of Cr12 with quenching treatment.
Received goods table: Welded steel with support rollers for product collection (2 pieces, 3 meters each).
