商品の詳細:
|

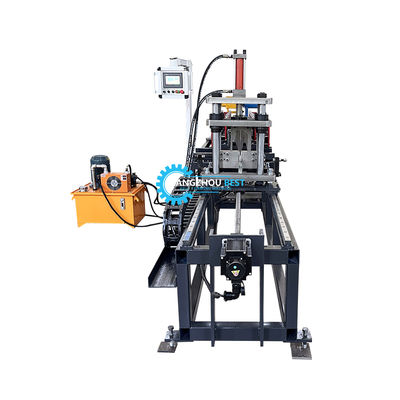

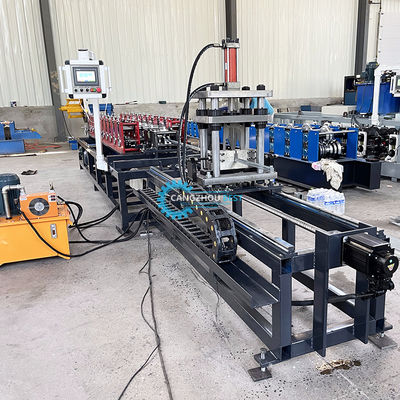

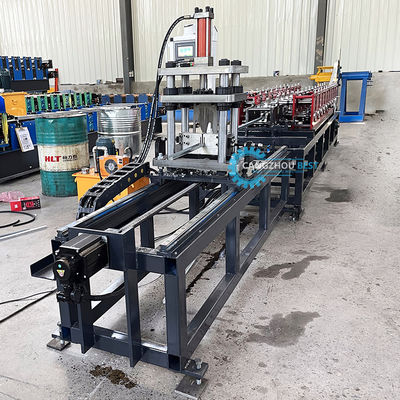

| 製品名: | 高速天井金属スタッドおよびトラックロール成形機 | 制御システム: | PLC |
|---|---|---|---|
| 切断タイプ: | 停止しない液圧切断 | 保証: | 2年 |
| 一生: | 10年 | ローラー材質: | CR12鋼 |
| シャフト材質: | 45＃スチール | 原材料: | 0.3～1.5mm |
| 電圧: | 380V/220V あなたの要求に応じて | スピード: | 20-30m/min |
| ハイライト: | steel profile roll forming machine,metal stud track forming machine,light steel framing channel machine |
||
| Component | Quantity |
|---|---|
| De-coiler | 1 set |
| Feeding Guiding Device | 1 set |

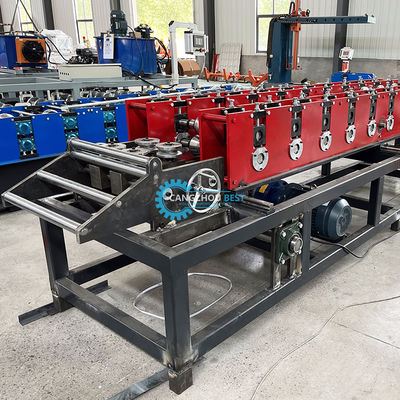

| Roll Forming Part | 1 set |
| Hydraulic Cutting Device | 1 set |
| Computer Control Box | 1 set |
| Hydraulic System | 1 set |
| Run-out Table | 1 set |
| Parameter | Specification |
|---|---|
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 5.5 kw |
| Pump Power | 3kw |
| Power Supply | 3-Phase, 380V, 50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 60mm |
| Backboard Thickness | 16mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500×1400×1350mm |
| Total Weight | 6T |
| Machine Size | 10m x 1.2m (L x W) |
| Working Size | 20m x 2.5m (L x W) |
| Power Supply | 8.5kw |
| Frequency | 50-60Hz |
| Wires/Cables | 4-6mm² (length according to workshop) |
| Labor Cost | 2 workers |
| Tools | Spanners and screwdriver |
| Lift Device | 3-5t forklift or crane |
