商品の詳細:
|
| 製品名: | 亜鉛メッキ鋼プロファイルPLCコントロールマルチサイズUスタッドコールドロール形成マシン | 打つタイプ: | 油圧 |
|---|---|---|---|
| 制御システム: | plc | 切断タイプ: | 飛行は見た |
| 保証: | 2年 | 一生: | 10年 |
| ハイライト: | galvanized steel U stud forming machine,PLC control cold roll forming machine,multi-size stud roll forming machine |
||
Machine Component
| Roll forming machine | 1 set |
| Hydraulic cutter | 1 set |
| Electrical control system | 1 set |
| Hydraulic system | 1 set |
| Normal run out table | 3 PC 1m*1m |
| Manual de-coiler | 1 set Max. loading 5 T |

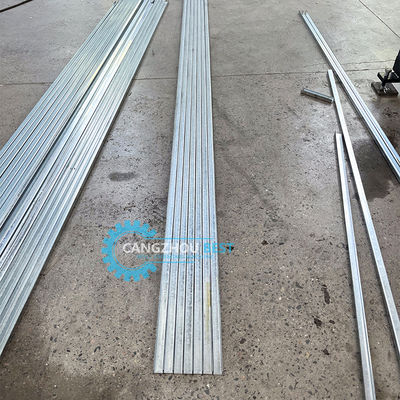

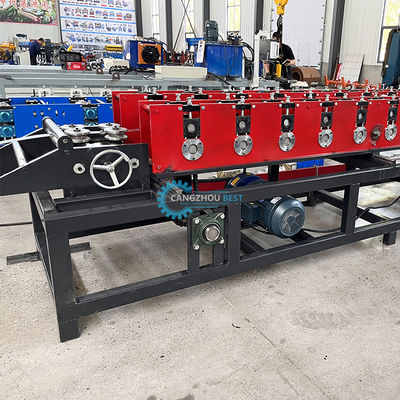

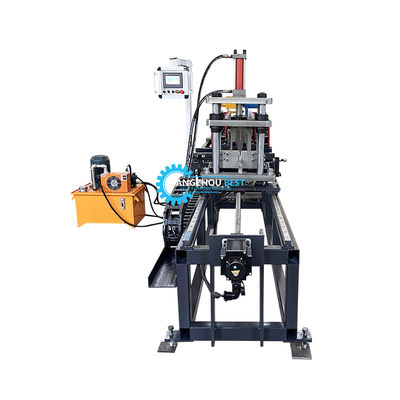

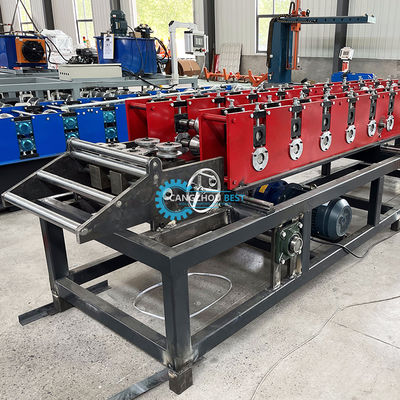

Roll forming machine
| Description | ||
| Product Name | Stud and Track Machine | |
| Machine Size | 5000mm*1200mm*1200mm | |
| Machine Weight | About 4 T | |
| Frame Materials | 350H steel | |
| Forming Shaft | Diameter | 60mm |
| Material | 45# quenched and tempered material | |
| Forming roller | 45# Forging Hard Chrome Plating | |
| Cutting System | Hydraulic Cutting | |
| Main Engine power | 3KW with cycloidal reducer | |
| Forming Rows | 12 rows | |
| Forming Speed | 8-12m/min | |
| Pressing Thickness | 1mm | |
| Effective Width | 50mm | |
| Pressing width | 300mm | |
| Electric Control System | SIEMENS/ Schneider | |
| Pump Station Motor | 3 KW | |
| Transducer | SIEMENS | |
| Coder | Wuxi "rip" or "Xin Ya" | |
| Switch |
" CHINT "or" delixi" |
|
Hydraulic Cutting
1) Adopts post cutting, Stop to cut;
2) The cutting blade material is Cr12 with quenched treatment.
3) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.
5) The power of cutting is provided by hydraulic station.
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.
Hydraulic station
1) It supplies the power for the hydraulic cutter.
2) All hydraulic accessories are all use Chinese famous brand products.
4) Hydraulic motor power: 3KW
PLC Control System
1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
2) Delta converter adjusts speed technology, realize the automatic production.
3) Text screen is input and cancelled the working data.
4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)
Product Rack (un-powered)
1) They are used to put the final product when product coming out from cutting device.
2) Two pieces, each piece length is 1m, total length is 3 meters.
3) Collect the final product and final products are convenient to be stacked by workers.
