商品の詳細:
|
| 名前: | 高速飛行ダブルラインU＆Cスチールプロファイルメイキングロール形成マシン | 色: | あなたの要求として |
|---|---|---|---|
| 電圧: | 380V/50Hz/3相 | 材料: | PPGI/GI |
| フレームパネルの厚さ: | 14mm | 保証: | 2年 |
| ハイライト: | high speed steel profile roll forming machine,double line U&C roll forming machine,stud and track roll forming machine with warranty |
||

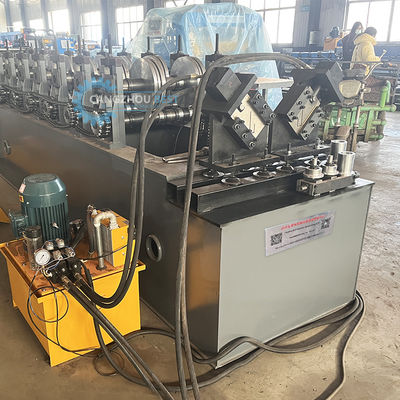

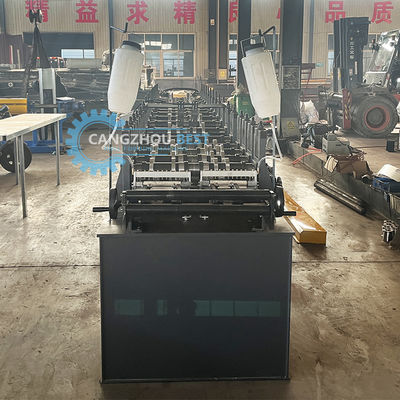

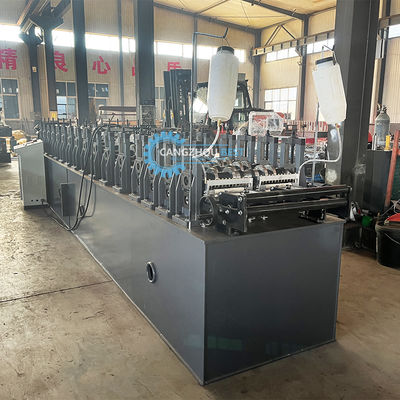

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine
Work Flow
Decoiler------feeding------roll forming------cut to length----multi-revising -----output table
Machine Component
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| Multi Revsiting | 1set |
| PLC Control Box | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
Decoiler
Max. Width:300 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 3000 kgs
Type: Manual Or Hydraulic (Optional)
Roll Forming Machine
Material Thickness: 0.6-1.2mm PPGI and GI
Roller Stations: 14 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 60mm
Bottom frame: 36# H-section steel
Motor Power: 3kw
Driven type: 1.0＂Chain
Diameter of shaft: 65mm
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Cutting Device
| Type |
Hydraulic, Automatic Cut-Off |
| Power | 3kw |
| Cutting Blade Material |
Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60° |
Multi Revsiting Device
Rollers: 1 group
Material for roller: 45# steel polished and coated with chrome HRC55-60°
Functon:it uses for revising the finished product to make the product straight.
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Hydraulic Pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system | Cooling fan |

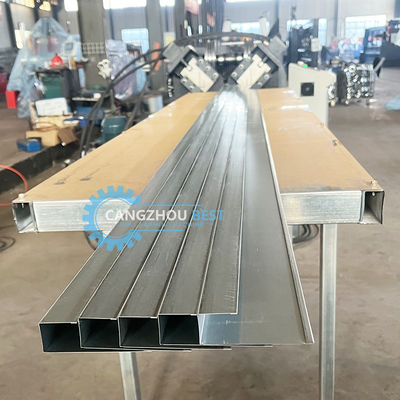

Output Table
No power type
Length: 2m
Packing Detall
| 1. |
40 GP container ; main machine naked and fastened with iron wire in the container. |
| 2. |
Rollers were painted with oil and packed with plastic film. |
| 3. |
Electrics devices be packed with wooden box.for Standard export packing. |
| 4. |
All Components Fixed by steel wire with Container. |
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
